World's largest linear friction welded component produced

Back to Media and Events 2013-07-creepimage-inspecting-creep-damage-in-critical-power-plant-components 2016-09-cutting-edge-technology-for-nuclear-decommissioning A career in welding inspection Additive manufactured medical implants to enter mainstream Additive Manufacturing UK Strategy update available for download Advanced electron beam facilities meet advanced industrial challenges Advanced ultrasonic full matrix capture inspection software launched Armourers & Brasiers' awards open for entries Art exhibition leads to new method of laser metal deposition Asbestos detection made easier and more reliable ASME issues White Paper on auditing of welding Audit shows TWI as integral to innovation Aviation Industry Corporation of China collaborates with TWI BeamAssure™ – electron beam welding quality assurance tool Best practice for nuclear construction industry welding BS 7910:2013 - Assessing flaws in metallic structures Call for papers: 12th International FSW Symposium CII and TWI awareness seminar in composites technology Coatings and surface engineering: addressing the needs of industry Combatting ice and erosion in extreme low temperatures - EIROS Combining Cathodic Protection with Aluminium Coatings CROWN project commended for offshore wind corrosion work Depositing silicon carbide coatings by thermal spraying Digital Twin Technology to monitor offshore assets Digital twin technology wins environmental business award Dr Melissa Riley presents paper at international conference Dr Melissa Riley represents TWI at international conference eLearning package for CSWIP 3.1 Welding Inspector launched Entry is now open for SkillWeld 2016 Extending Aircraft Life Using Cold Spray Technology Familiarisation Course to EN ISO 3834 Fibre delivered laser beam cutting optimisation Friction stir welding – joining the future of industry Friction stir welding and Japanese jewellery Government funds £10 million technology hub in Teesside Has your PCN NDT Certification been voided? TWI Can Help… Her Royal Highness The Princess Royal opens new laboratories at TWI High-pressure hydrogen testing at TWI Ice-repellant coating for aerospace and energy industries Industry benefits of composites microwave processing Innovation Centres at TWI deliver progress for industry INTRAPID produces rapid in-line laser AM inspection systems Introducing the TWI Virtual Academy: studying on your own terms Investigating geothermal coatings for the future of renewable energy Laser scanner improves TWI weld analysis services for Members Lasers for decommissioning: the story so far Lifting the lid on innovation: exploratory projects at TWI Lord Heseltine opens new TWI technology and training centre Meeting reinvigorates Welding Institute's Liverpool branch Mike Russell appointed as TWI Operations Director 'Mind the doors' – New project investigates train door failure Mobile electron beam welds for fabricating large structures ModuLase - combining laser processes for the future of manufacturing MoU between ALFED and TWI enhances collaboration Nanosecond pulsed laser expands opportunities for project work NDT Voiding of PCN certification from NDT International New benefit for TWI Members: free access to Welding Abstracts journal New building to house TWI's structural integrity expertise New centre for Advanced Manufacturing Technologies launched New eBooks added for Professional and Industrial Members New facility for testing the barrier performance of polymers New fracture testing accreditation New Granta Centre manager guarantees premier conferencing New home and new capabilities for TWI in Middlesbrough New manufacturing process supports Hayter's winning position New sensor technology for safe shale gas extraction funded New TWI article breaks down the changes to ISO 15614-1 New ultrasonic testing courses from the TWI Virtual Academy New welding apprenticeship standards receive government approval Novel solution for submersible pumps in oil and gas industry Open Day sparks the start of a new era of research for TWI Pioneering tests being conducted on bespoke TWI rig Plant Inspection training meets need for competent workers Plastics welding experts answer your questions at Aquaculture UK 2014 Progressing graphene as a supercritical fluid barrier Project investigates Powder Metallurgy for astrospace use Purpose-built pressure testing facility opens for business at TWI Purpose-built pressure testing facility to be constructed at TWI Registration opens for TWI BS EN ISO 15614-1 (2017) training RJD Engineering gains Factory Production Control system Certification Rolls-Royce's Martin Boyd discusses the benefits of becoming an IEng Showing expertise in corrosion safety, investigation and assessment Simulating real-world conditions for oil and gas research Skills Development Fund Scheme provides extra TWI courses SkillWeld medallist goes on to take gold at EuroSkills 2016 SOCAR and TWI celebrate new competence training partnership Success for TWI's first blended learning course candidates Successful engineers graduate from EWF/IIW Diploma in Welding 'SUPERSLAB' to meet thicker high-strength steels challenge SurFlow: secure, robust, integrated data transfer through composites Symposium highlights developments in linear friction welding Taking the next step as a CSWIP Welding Inspector Tate Modern use solvent technology for art restoration Teletest business transfers to Eddyfi Technologies The 50-year view of fracture The Transport Systems Catapult and TWI Announce Partnership The Welding Institute Annual Awards and Dinner 2017 The Welding Institute Awards 2018 – Applied Technology Award The Welding Institute promoting career development at NECR exhibition True Stress-True Strain Tensile Testing to Failure TWI and Lloyd's Register launch Fullagar Technologies initiative TWI and Lloyd's Register projects advance take-up of AM TWI celebrates National Women in Engineering Day TWI CEO Christoph Wiesner awarded OBE TWI combines heritage with innovation for the Morgan Motor Company TWI commence 'SubSeaLase' decommissioning project TWI delivers plastics welding training course to Fusion Marine TWI develops essential metallography training to ensure best practice TWI enters research centre agreement with AECC BIAM, China TWI helping UK businesses to 'Access India' TWI helps bring Philips Avent's thermoplastic nebulizer to market TWI helps Engineering College meet industry demand for staff TWI holds successful cold spray technology course TWI hosts graduation ceremony for EWF/IIW Diploma engineers TWI joins 'Integral' nuclear waste project TWI lands NDA innovation award for nuclear decommissioning TWI launches course for advanced digital radiography TWI pioneers 'invisible weld' process TWI Pioneers New Dissimilar Weld for European Space Agency TWI rewards outstanding undergraduate engineering projects TWI signs Memorandum of Understanding with Saudi Aramco TWI Supports Underwater Laser Cutting Project TWI Technology Fellow given Visiting Professorship at LSBU TWI Training success story - Vera Dragoi TWI wins RIBA Awards TWI working to progress composites in the automotive industry TWI's Dr Philippa Moore: A role model for female engineers TWI's Dr Shiladitya Paul called as guest editor of Coatings journal Ultrasonic imaging climbing robot passes field trials Update on CPD for Welding Institute Professional Members Vince Cable India visit promotes UK business successes Welding Institute Annual Awards 2018 Welding Institute's latest Engineering Council registrants Welding the unweldable: TWI friction stir welds ODS steel WindTwin project to revolutionise wind turbine technology Workshop to address dissimilar materials joining challenge World's largest linear friction welded component produced World's most precise weld made at TWI

29 November 2017

TWI has recently showcased the world’s largest Linear Friction Welded (LFW) component – an aluminium wing rib for commercial aircraft.

Comprising 22 rib feet joined to a 2.5 metre long baseplate, the wing rib is designed to strengthen an aircraft’s wings, and TWI’s use of LFW has opened up a new manufacturing route for these components. The LFW process also opens up potential for improved part performance and reduced production costs for the aviation industry.

A prototype was originally developed by TWI as part of the ‘STeM’ programme funded by Innovate UK and GKN Aerospace and the wing rib first exhibited at the Farnborough air show in 2015. However, the innovative new design was more recently shown, in a part-machined condition, at the Advanced Engineering Show at the NEC in Birmingham in November 2017.

The wing rib is made from aluminium AA7050 and is pre-formed to a near net shape, which greatly reduces material wastage and thereby machining time and costs. With 70% less material wastage and a 43% reduction in machining time, the selective material placement greatly reduces ‘buy-to-fly’ ratios while enhancing performance.

Furthermore, the grain orientation of the rib feet can be tailored for directional strengthening, which may allow for further reductions in local thicknesses.

The performance of each wing rib has a direct impact on the operation of the wing and thereby influences the efficiency of the airframe as a whole.
Using this new LFW manufacturing approach offers a real potential for improved part performance and reduced production costs, while the local selection and tailoring of alloys and material textures allows for further optimisation and cost saving.

You can find out more about TWI’s Linear Friction Welding capabilities here.

For more information, please contact us.

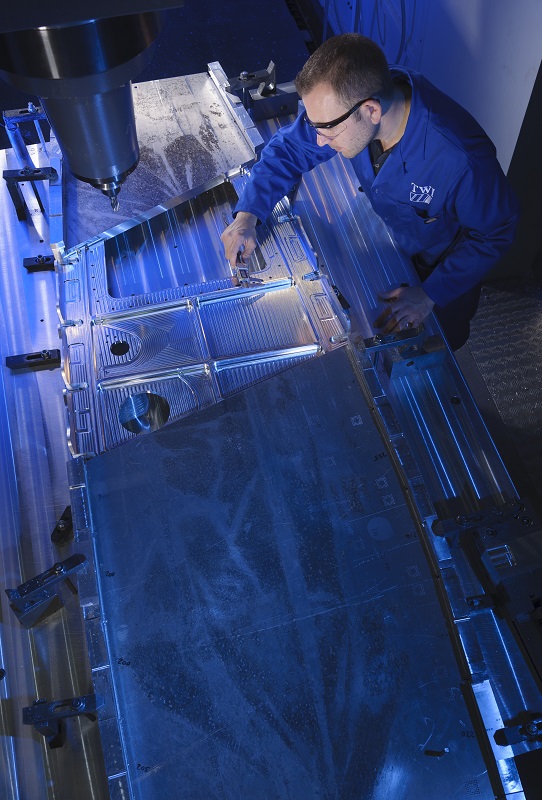

LFW Wing Rib
