Technical Insight: Friction Welding

Friction welding is a solid-state joining process that creates welds between two parts through mechanical friction. This is achieved without melting the parts, typically by rotating or oscillating one part against another. This creates frictional heat that softens the materials at their interface, allowing them to bond under pressure. Friction welding methods include rotary friction welding, linear friction welding, and friction stir welding. The exact process details differ according to the type of friction welding machine and method used.

TWI has been conducting research into friction welding for decades – including the invention of friction stir welding and other related procedures. Our experts provide industry with impartial and independent advice in all friction welding processes, covering everything from design through to process parameters, inspection, and more.

Core Research Programme (CRP)

The TWI core research programme uses funds from Industrial Membership fees to undertake projects for the wider benefit of our Industrial Members across industry. Conducted independently, these projects provide impartial research and innovations across welding, joining and allied technologies, drawing upon our ongoing technical excellence and decades of knowledge.

Many of our earliest friction welding CRP projects were related to the use of the process to join different materials. This includes a 1976 project to investigate friction welding of aluminium alloy HE9 to stainless steel with a series of tests to ascertain weld quality in 25mm diameter solid bar friction welds between aluminium alloy HE9 and EX 58B (321S12) stainless steel. The same year, our technical experts also researched friction welding of copper to stainless steel, again undertaking a series of tests to determine weld quality, this time between tough pitch copper and austenitic stainless steel using 25mm diameter solid bar. By 1979, TWI had conducted a comparative study between the use of friction welding and diffusion bonding (both solid phase processes) to join aluminium to steel. The work with aluminium continued into the 1980s with studies into the friction welding of aluminium alloys to stainless steels in 1982 and again in 1983.

By 1984 this research had extended to encompass a feasibility study into the possibility of surfacing by friction welding, with brief trials showing that both stainless steel and Inconel 600 could be deposited on mild steel, although no success was achieved when attempting to deposit pure aluminium on mild steel and copper on stainless steel.

Our investigation into friction welding continued in 1985 with an investigation into the composition and properties of friction welded 25mm steel bars to determine the effect of steel composition on mechanical (bend and Charpy impact) and metallurgical properties of both as-welded and post-weld heat treated parts. Also in 1985, TWI’s experts investigated orbital friction welding of mild steel, finding comparative time savings and a reduction in the friction pressures necessary to produce similar welds by conventional rotary welding.

With growing interest in the use of friction welding in the aeroengine, gas turbine and power generation industries, TWI conducted a study into the properties of stainless steel friction welds in 1986. This included an evaluation of mechanical and metallurgical properties to begin to provide data on welding parameters and obtainable joint properties. By 1987 TWI was researching the use of linear frictional motion to join rectangular sections, gaining an understanding of the process through test welds conducted on four different engineering materials.

Although our earlier work had focused on metals, a 1988 CRP project sought to determine welding parameters relative to joint integrity and strength for friction welding injection mould / mid density thermoplastics.

Primarily aimed at the gas turbine industry, our 1992 CRP project researched the use of linear friction welding for the joining of Alpha 2 titanium aluminides that were favoured for their high temperature properties.

Polyethersulphone (PES) is one of the most important heat-resistant engineering thermoplastics, able to perform satisfactorily at elevated temperatures (up to 200⁰C), under stress and on exposure to moisture and other environmental factors. The effects of welding on the structure and ageing properties of PES were not known at the time of our 1993 study, which evaluated the effects of hot plate and linear friction welding on ageing properties of both unreinforced and glass fibre reinforced PES. Also receiving interest at this time were intermetallic alloys, due to their desirable properties such as high temperature mechanical properties, resistance to oxidation, and in many cases low density. These alloys were researched in relation to linear friction welding for a project report published in 1994.

Moving forward to 2005, we delivered another research project to investigate the rotary friction welding of engineering materials, with a focus on the peripheral velocity, applied force and the material softening response caused by frictional heat. This was followed by a 2008 project to investigate linear friction welding of engineering materials.

Linear friction welding was also investigated for production engineering in 2010, with a series of investigations to help quantify the scalability, application, repeatability, and production rate limits as well as establishing the repairability of LFW components and the viability of the process to manufacture low volume near net shape preforms.

 By 2012 TWI had extended earlier research into surfacing with friction welding to assess the potential for manufacturing blisks and guide vanes from a range of high performance alloys using friction welding-based additive manufacturing.

The relatively low temperatures associated with friction welding created interest in the process for joining dissimilar materials. The lower heats reduce the potential formation of intermetallic compounds, residual stresses, and shrinkage occurrence. TWI’s experts drew upon this knowledge for a 2013 CRP project to assess friction welding for joining titanium to stainless steel.

We returned to the topic of using linear friction welding for the solid-phase additive manufacture of semi-finished, close to net shape products in 2015. This project work, which was aimed at the oil and gas industry, sought to reduce the volume of raw material used and the machining required for part production, leading to cost savings, time savings and the associated environmental benefits. Also using linear friction welding, but this time for the aerospace industry, a 2020 CRP project investigated the use of the procedure with aluminium-copper-lithium alloy to demonstrate the process capability to build structural parts and/ or add materials / functionality, locally, to primary product forms, where desired (Figure 1). Also working on behalf of the aerospace industry was a 2020 project for the linear friction welding of carbon fibre reinforced thermoplastic (Figures 2-3).

Joint Industry Programme (JIP) Projects

As well as our core research, TWI also delivers joint industry programme (JIP) projects. These projects tend to address a specific industry challenge, allowing interested parties to invest into the project in return for exclusive access to the results and the opportunity to direct the aims of the project.

Friction welding-related JIP projects undertaken in recent years at TWI include the friction stir spot welding of high strength steels for transport industries in 2006, and stationary shoulder friction stir welding (SSFSW) for the joining of titanium alloys in 2007.

The following year, in 2008, we completed joint industry research into bobbin friction stir welding for the joining of aluminium alloys, including process industrialisation, tool design, tool materials, joint quality, fixturing, component tolerance, process repeatability and the production of prototype components. This project work was revisited in a 2012 project to further develop the FSW floating bobbin technique.

Also working with friction welding and aluminium alloys was a 2010 JIP project to assess the feasibility of applying FSW corner welding to a range of commercially available aluminium alloys and section thicknesses chosen by the sponsors. This work was expanded upon in 2016 with another JIP project, this time investigating the use of FSW to join thick section aluminium alloys, delivering benefits including increased production rates, lower tooling costs, improved weld properties and reduced distortion.

Public Funded Projects

In addition, TWI has built up decades of collaborative work assisting with a range of public-funded projects.

The FrictionHarmonics project developed a prototype, non-linear, high frequency ultrasonic non-destructive testing (NDT) system for the in-process inspection of friction stir welds for kissing bonds in aluminium, titanium and nickel alloys as well as for steel structural components. SignaStir also focused on quality assurance in FSW, although this time for the manufacture of aluminium rolling stock and marine vessels.

The European Commission-funded Lostir project aimed to make FSW more accessible to manufacturers by adapting and retrofitting milling machines with compatible tools and process monitoring equipment to ensure high quality welded joints. Also funded by the European Commission and focused on FSW was the MicroStir project, which worked to develop small scale FSW for use in electronic connections and encapsulations seeing harsh service environments.

Combining FSW with NDT was the StirScan project, which aimed to detect kissing bonds in friction stir welds in aero structures, while the Mobi-Weld project developed a prototype mobile FSW system for on-site marine fabrication. In this project we addressed one of the major limitations of FSW at the time, which prevented its use on a mobile machine, in that the process requires relatively high levels of force to be applied during welding. The challenge was therefore to develop a mobile FSW system incorporating a crawler system that would be low-cost, transportable and have no limit on panel and weld length. The system had to be capable of resisting the welding forces and provide a precise, smooth FSW tool path movement. At the time it was believed to be the first machine in the world of its type, representing a major breakthrough in friction welding (Figures 4-5).

One of the advantages of friction welding is the ability to aid lightweighting in industries such as aerospace, rail and automotive. The LightBlank project used FSW alongside hot form quenching to create innovative lightweight aluminium alloy pressed parts for the transport industry, enabling both lighter and cheaper manufacture (Figures 6-7). The TiFab project introduced innovative linear friction welding technology for the near net shape manufacture of advanced titanium (Ti) aerospace components, boosting productivity and reducing costs (Figure 8), and the FlexiFab project aimed to create an automated robotic system that uses FSW to weld aluminium parts for the transport industries. The Ultra Lightweight Automotive project investigated new methods of FSW to join automotive body structures made from novel lightweight alloys in order to help meet CO2 emissions targets.

The benefits of FSW were applied to shipbuilding through the collaborative HILDA (High-Integrity Low-Distortion Assembly) project, which investigated the viability of friction stir welding of steel for shipbuilding applications (Figure 9). This work was built upon further with the RESURGAM project, with TWI’s expertise underpinning the steel FSW technology required for the project, which demonstrated applicability to not just shipbuilding, but also the energy, oil and gas, civil engineering and defence industries (Figure 10).

Elsewhere, TWI’s friction welding expertise was used to develop the ‘AdStir’ technique, which uses filler wires to add material into gaps between components to overcome issues related to alignment and condition of supply. This work led to the development of a unique technique called Friction Stir Gap Bridging (Figure 11), opening up the use of FSW to join components without all of the costs of pre-machining for large structures.

We also joined seven other organisations for the LinFric project, which aimed to drastically reduce the cost of linear friction welding equipment, making the technology more accessible to potential users especially from the power generation, automotive and aerospace industrial sectors (Figure 12).

Dedicated Industrial Member Support Projects

Of course, much of our work is conducted on behalf of specific Industrial Members to improve processes and solve challenges related to their industry and operations. As an impartial and independent organisation, TWI typically conducts these in strict confidence with exclusive access to the results being provided to the Member company. However, there are some instances where we are able to provide examples of the type of work undertaken directly on behalf of Industrial Members in different industry sectors…

- Friction Stir Welding (FSW) Moving into the Medical Sector

TWI supported Abingdon-based LTi Metaltech to bring FSW to their in-house production capabilities as they sought to move away from autogenous DC arc welding for their operations. This involved the conducting of two FSW procedure development studies to determine appropriate tool designs, welding parameters and weld quality in accordance with ISO 25239:2011 Part 1 to 5: FSW of Aluminium.

- Rotary Friction Welding for Medical Application

Also working for the medical industry, we undertook a project to join a difficult alloy (Nitinol – an alloy of nickel and titanium) by rotary friction welding using an interlayer (Figure 13). Rotary friction welding was chosen as the potential solution as the lack of melting associated with the process would minimise the reduction of desirable properties and any joining difficulties previously experienced using a fusion process. From the project findings TWI was able to recommend that further work would be worthwhile to assess the effects of torque together with interlayer thickness, on corrosion resistance and fatigue performance.

- Friction Stir Welding of Combat Vehicles

Our work has also seen us offer advice for the military, including the use of FSW for the manufacture and repair of assets such as lightweight tanks (made from aluminium alloys or aluminium based metal matrix composites (MMCs)), military bridges and amphibious personnel carriers, steel tanks (friction stir welded from extra high strength armour plate using two passes from two sides after further tool and parameter development), and titanium lightweight field howitzers. In addition, the development of Whorl™ friction stir welding tools offer a number of benefits for defence applications, including high welding speeds, encouraging tensile, fatigue, deformability and ballistic impact properties, no need for joint preparation, low distortion and high reproducibility (Figure 14). We have also found applications for rotary and linear friction welding, such as track rollers for tracked vehicles, bimetallic tipping of projectiles and armour piercing shells, machine gun barrel liners, and fuse liners. Other friction-based applications suited to military uses include friction surfacing, radial friction welding and friction stud welding.

- Friction Stir Welding Variant for Transport Applications

TWI was contacted by Nippon Light Metal for assistance in the application of stationary shoulder friction stir welding (SSFW) for the fabrication of vacuum chambers as an alternative to fusion welding.

- High Integrity Welding of Thick Section Magnesium

Vibration testing systems manufacturer, LDS Test and Measurement reached out to TWI for support in exploring an alternative route for manufacturing bespoke large vibration tables. Wirth a requirement to be lightweight but with a high strength, these tables are manufactured from magnesium, which also possesses vibration damping properties. We conducted welding trials using a high force FSW machine capable of welding 75mm thick plates in a single pass. The welding process proved to be a success, and the component was machined with no evident signs of the joint, demonstrating that the consolidated material along the weld line was free from porosity. Not only did the welding process prove successful for the application, but it was shown to represent a significant cost saving over the traditional fabrication process.

- Advanced Techniques used for Sealing Nuclear Waste Canisters

Having already proven the efficacy of reduced pressure electron beam welding for the manufacture and sealing of nuclear waste canisters, TWI were once-again approached by SKB – who manage the storage and disposal of Sweden's nuclear waste - to develop FSW in 50mm thick copper. The aim was to demonstrate high integrity full circumferential lid to canister welds (Figure 15). Our experts developed unique tools for the process alongside a novel weld cycle control system as well as providing ongoing support towards production.

- Delivering FSW Support for Formwork Specialist

TWI had worked closely with Malaysia-based MFE Formworks in 2011 to support their adoption of FSW. They contacted us again when they decided to more their formwork manufacturing over entirely to FSW in 2016, allowing us to create a three-stage work programme comprising a procedure development study at TWI UK, on-site training in Malaysia, and machine testing and commissioning in Taiwan. Our experts helped identify optimal welding conditions, train staff and test MFE Formwork’s FSW production line.

- TWI Doubles Welding Speed for London Olympic Stadium Seating

Aluminium extrusions company, Sapa were contracted to provide seating decks for the redevelopment of the London Olympic Stadium (now the London Stadium) following the 2012 Olympic Games. Sapa were asked to provide 3500 retractable decks from extruded aluminium and incorporating joints made using friction stir welding (FSW). In order to meet their production targets, Sapa called for assistance from TWI who identified suitable process parameters and tool designs through trials carried out at our headquarters before the findings were taken to Sapa’s Harderwijk premises, to apply them in the production environment (Figures 16-17).

- Friction Welding Processes for Floating Solar Application

Sunlit Sea AS, a technology provider to the floating solar industry contacted TWI with regard to the development of FSW and friction stir spot welding solutions for their solar power installations. The solution was based on the prefabrication of serially connected solar panels with back plates made from an intrinsically robust and heat conductive aluminium structure, facilitated for and integrated with a new and effective solution for logistics. The final float assembly (Figures 18-21) consists of aluminium pressings with dimples in a honeycomb structure. The joining method needed to weld the outer perimeter of the pressings to create a leak-tight edge, weld the flat section of the dimples to increase the stiffness of the assembly, and create leak-tight holes for attachments. Our experts recommended the use of FSW as the joining solution along with friction stir spot welding (FSSW) to weld the dimples and create leak-tight holes in the same fixture used for FSW, increasing productivity. TWI developed the process parameters to be used as well as the dedicated FSW and FSSW fixtures before fabricating a demonstrator assembly to validate the solution.

- Friction Stir Welding for Low-Cost Titanium Propellant Tanks

TWI worked with Airbus Defence and Space to meet a European Space Agency (ESA) request to investigate a cost-effective method for the manufacture of titanium propellant tanks. Our experts opted to use stationary shoulder friction stir welding (SSFSW) techniques for the cylindrical welding of titanium alloys suitable for launch vehicle propellant tanks, with the aim of reducing lead times and costs as well as raising the Technology Readiness Level (TRL) of SSFSW of titanium alloys to prototype demonstrator (TRL6). In August 2016, following extensive reviews of materials and manufacturing processes, TWI successfully performed the world’s first full circumferential SSFSW of two 420mm cast titanium cylinders. The test pieces were then subjected to full NDT evaluation and mechanical assessment to confirm joint quality and properties. In winter 2016, TWI had fabricated and delivered the first one of four SSFSW cast titanium prototype demonstrator (TRL6) propellant tanks to the European Space Agency (Figure 22), leading to the awarding of the Raiser 2017 Award for Friction Welding Innovation.

- Linear Friction Welding for Manufacturing of Space Hardware

Our work using friction welding for space applications continued with a project funded by both the European Space Agency (ESA) and the UK Space Agency for the development and qualification of a linear friction welding based manufacturing route for a satellite application. This would save raw materials costs and improve manufacturing flexibility. This included a survey of candidate applications/parts, the development of an LFW procedure to meet the acceptance criteria for the selected application, validate the LFW-based manufacturing route by fabricating of a representative technology demonstrator, qualify the LFW technology demonstrator using a testing protocol based on the relevant space standard (ECSS-Q-ST-70-39C1), and determine the potential improvements in manufacturing cost, efficiency and environmental friendliness of the LFW based manufacturing route via a life cycle and economic assessment (Figures 23-24).

- Linear Friction Welding for Spacecraft and Launch Vehicles

Also investigating linear friction welding (LFW) for space applications was a project completed in partnership with Airbus UK and ArianeGroup to lower the cost of manufacturing structures for spacecraft and launch vehicles. This would be achieved by replacing processes to machine components from solid plates or forgings with LFW. Specifically, this project developed the joining of pipeline attachment bosses on cryogenic fuel tanks for Ariane 6 as well as the connection of tabs on propellant fuel tanks for the Eurostar Neo satellite (Figures 25-28).

- Linear Friction Welding for Aerospace Engine Fittings

Linear friction welding (LFW) was also investigated as a process for manufacturing aircraft structural components, particularly from titanium alloys and nickel superalloys. Working on behalf of Parker Lord, our experts noted that LFW manufacture of near-net-shape components would save over 50% in material, production and overall part costs compared to their existing approach. Following this investigation, TWI created a full scale demonstrator of the rear engine fitting (Figure 29).

Example Process Advancements

TWI’s research work has led to a number of important breakthroughs in friction welding, including the invention of friction stir welding in 1991.

- Friction Stir Welding Adopted for Invisible Stainless Repair

Friction stir welding (FSW) had been shown to join sheet materials but we saw a gap for sheet metal repair that could be filled by FSW. The main difficulty in using FSW for sheet metal repair was the hole created by the rotating tool at the exit point. To solve this, we adapted the process to include an artificially-created ramp of material a few millimetres above the substrate where the tool can be removed from the process and the ramp machined off once the weld was complete. Advantages include being able to operate the repair process in wet environments while the process is programmable and repeatable.

- Dual-Rotation Friction Stir Welding

In traditional friction stir welding (FSW), overheating or melting along the shoulder contact side can occur, creating fusion-related defects along the shoulder contact side weld surface. To solve this problem, TWI’s experts developed a variant of the process where the probe and shoulder rotate separately. Known as dual-rotation FSW, this process uses a welding tool with a central probe and an outer shoulder that rotate independently with respect to both direction and speed. This allows for a high rotational speed to be achieved with the probe but without a corresponding increase in the shoulder speed. Being able to optimise the combination of rotational speeds reduces the likelihood of defects being introduced by rotational shoulder contact.

- Continuous FSW in Steel

TWI’s experts used a new high-temperature composite tool to create a continuous weld of over 6 metres long in 6mm thick steel. This was achieved by keeping the shoulder temperature below 750°C, by controlling the welding parameters, for a high-quality weld and low tool wear rate. The new tool, when combined with careful application of the FSW process was shown to be able to extend tool lives to over 45 metres. This opened up the use of FSW for applications that required long, uninterrupted steel welds, such as in shipbuilding, bridge decking or pipe seam welding (Figure 30).



- Bobbin Tool Friction Stir Welding Developed

TWI developed a new method of friction stir welding (FSW) using a ‘floating’ bobbin shaped tool which was shown to be able to create thick section welds of up to 25mm thick. Ideal for joining low temperature softening materials such as 6082 aluminium, our experts were also able to join several two and seven thousand high strength aluminium alloys, as well as grade 5083. The process uses a one piece tool, unlike some FSW variants which require complex multi piece tooling, which is free to move in the vertical or Z plane about a centimetre up and down. Because the bobbin creates a full penetration weld, the potential for creating kissing bonds, usually associated with lack of tool penetration, is eliminated. In addition, the process involves zero vertical force, unlike earlier adaptations of the FSW process and no backing bar is required because the bottom shoulder supports the underside of the weld (Figure 31).

- Advanced Simulation of Friction Stir Welding

In an effort to improve the friction stir welding process (FSW), TWI explored the use of a new modelling approach; the Coupled Eulerian-Lagrangian (CEL) method. FSW of high temperature materials often meant that the tool material would lose strength or suffer excessive wear during the process. Being able to simulate this allows the user to accurately predict the influence of tool geometry on the integrity of the weld. To validate this new modelling approach, TWI generated models of previous experimental weld trials where temperatures, tool forces and tool torques were measured. Our experts then performed a directly coupled thermo-mechanical analysis, comparing the results of the simulation to the experimental measurements and showing a strong agreement between the experiments and the simulations (Figures 32-33).

- CoreFlow®: A Sub-Surface Machining Process

Through the development of friction stir welding (FSW) and friction stir channelling (FSC) TWI created a new, highly disruptive, sub-surface machining technique called CoreFlow®. This new technique allows sub-surface networks of channels to be integrated into two-dimensional or three-dimensional monolithic parts in a single manufacturing step. These channels could then be used for heat exchange or other applications. This new technique allows for i) the formation of a closed channel within the workpiece and ii) the production of extruded wire.

- Efficiency Improvements for Aluminium Coil Processing

TWI researched a solution for the processing of aluminium coils. These coils are made from rolled sheets of aluminium with a hollow cylinder being used to create an internal diameter around which the sheets can be wound (Figure 38). These coils can be treated to suit the requirements of its eventual application. This is achieved by coil coating, which can improve corrosion resistance and the aesthetic appeal of the coil material. Coil coating requires the coil to be unwound to be cleaned, etched, anodised, coloured and sealed before being rewound ready for shipping. However, because the sheet materials are non-continuous the end of one coil needs to be joined to the start of another. Typically achieved with adhesive taping, this process requires the production line to be stopped while the joint passes through each treatment station. This leads to significant manufacturing downtime, material waste and introduces an element of risk when resuming production. To solve this issue, TWI investigated the use of refill friction stir spot welding (Refill FSSW) to join the coil ends.

- Joining Al Stranded Cable Using Rotary Friction Welding

TWI conducted a series of trials to use rotary friction welding (RFW) to join stranded aluminium cable to aluminium bar as a proof of concept for using RFW to join two segments of aluminium stranded cable. This work aimed to create a cost-effective, efficient, high speed, and automated solution. Our team successfully joined stranded aluminium cable to a solid aluminium bar through RFW and also created a ‘double-sided’ welded demonstrator of two cables joined together via a solid Al puck using RFW. The specimens were tested to assess the mechanical properties the inside and outside cable strands.

Of course, this list of projects is not exhaustive, although it should provide you with an overview of the types of friction welding work undertaken at TWI over the decades. For more information on our work and how we can support your to meet your organisation's goals, please email contactus@twi.co.uk.

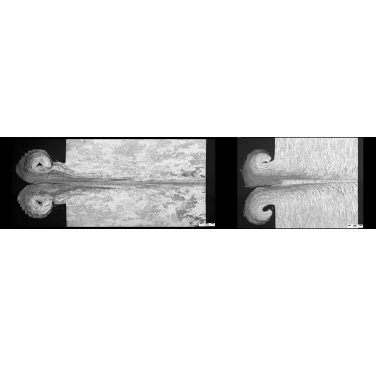

Figure 1. Longitudinal and transverse macrographs of a linear friction weld in Al-Cu-Li 2099 alloy
Figure 1. Longitudinal and transverse macrographs of a linear friction weld in Al-Cu-Li 2099 alloy

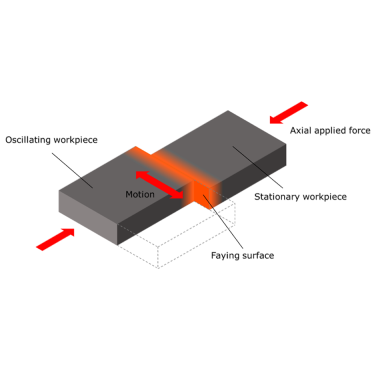

Figure 2. Basic principle of linear vibration welding/linear friction welding
Figure 2. Basic principle of linear vibration welding/linear friction welding

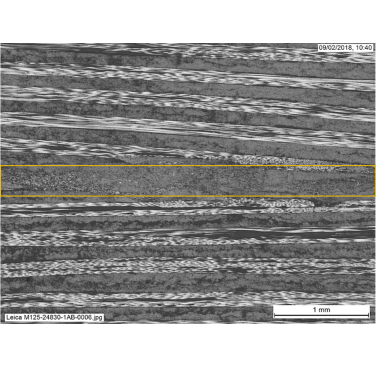

Figure 3. Linear friction weld in continuous carbon fibre/PEEK composite (yellow lines denote weld location)
Figure 3. Linear friction weld in continuous carbon fibre/PEEK composite (yellow lines denote weld location)

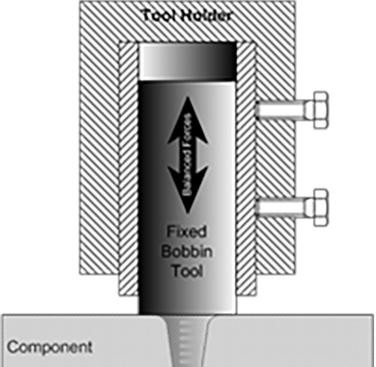

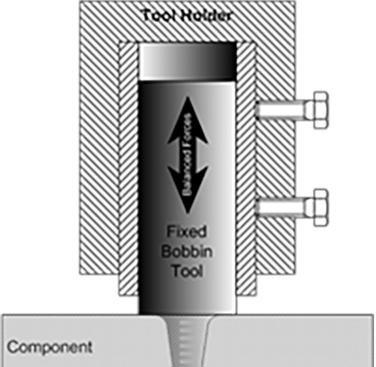

Figure 4. Mobi-Weld, low-force mobile welding tool solution
Figure 4. Mobi-Weld, low-force mobile welding tool solution

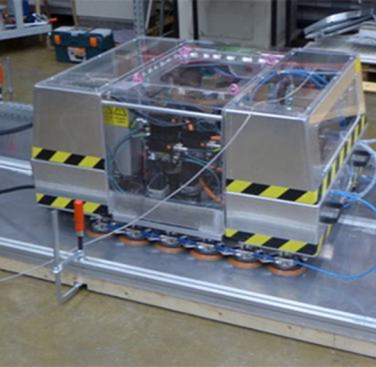

Figure 5. Mobi-Weld Crawler
Figure 5. Mobi-Weld Crawler

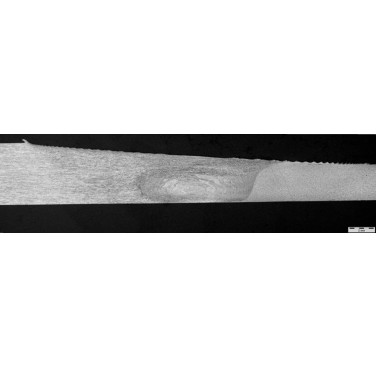

Figure 6. LightBlank, cross section of an FSW joint between AA6082-T6 plates with thicknesses of 3mm and 5mm
Figure 6. LightBlank, cross section of an FSW joint between AA6082-T6 plates with thicknesses of 3mm and 5mm

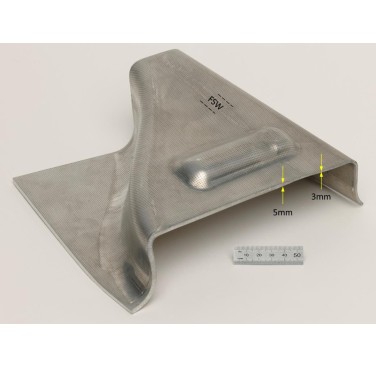

Figure 7.  LightBlank, small-scale automotive-based prototype, produced by forming a friction stir tailor welded blank
Figure 7. LightBlank, small-scale automotive-based prototype, produced by forming a friction stir tailor welded blank

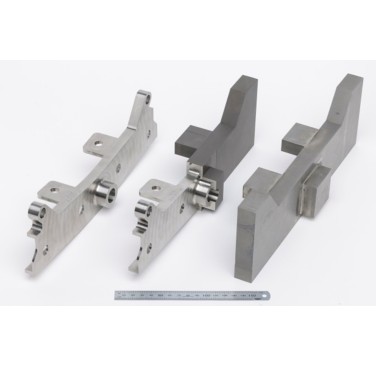

Figure 8. TiFab prototype part produced by LFW: fully machined, part welded and as welded
Figure 8. TiFab prototype part produced by LFW: fully machined, part welded and as welded

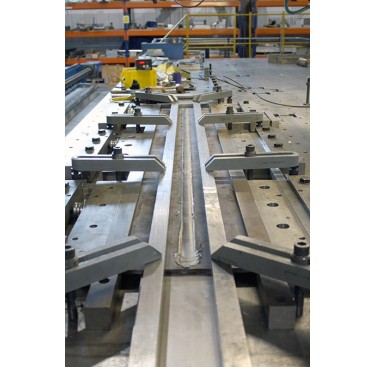

Figure 9. HILDA, FSW in half-inch thick shipbuilding steel
Figure 9. HILDA, FSW in half-inch thick shipbuilding steel

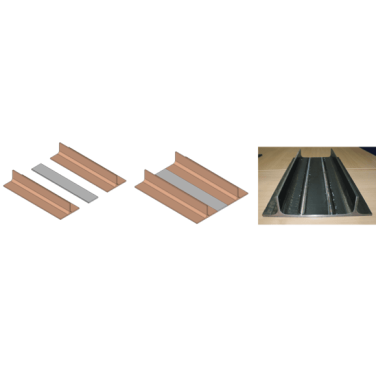

Figure 10. RESURGAM, novel technique developed for the manufacture of stiffened panels by friction stir welding that allows complex stiffened panels to be manufactured whilst reducing the number of welds required by half when compared to the existing arc welding technique
Figure 10. RESURGAM, novel technique developed for the manufacture of stiffened panels by friction stir welding that allows complex stiffened panels to be manufactured whilst reducing the number of welds required by half when compared to the existing arc welding technique

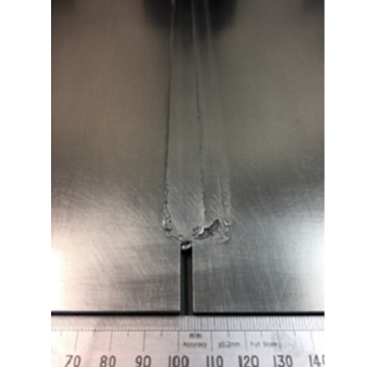

Figure 11. Friction stir gap bridging
Figure 11. Friction stir gap bridging

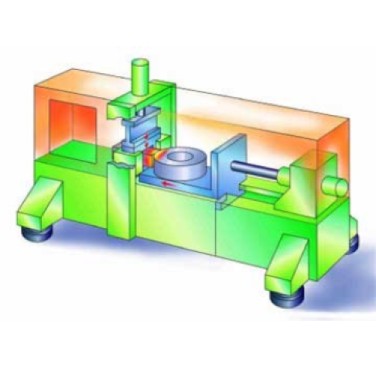

Figure 12. Artist’s impression of the LinFric machine
Figure 12. Artist’s impression of the LinFric machine
Figure 13. Macro of Nitinol (lower) to stainless steel (upper) via an interlayer
Figure 13. Macro of Nitinol (lower) to stainless steel (upper) via an interlayer

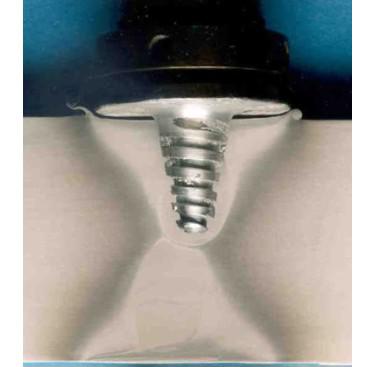

Figure 14. WhorlTM FSW tool in front of a section taken from weld in 75mm thick AA 6082-T6
Figure 14. WhorlTM FSW tool in front of a section taken from weld in 75mm thick AA 6082-T6

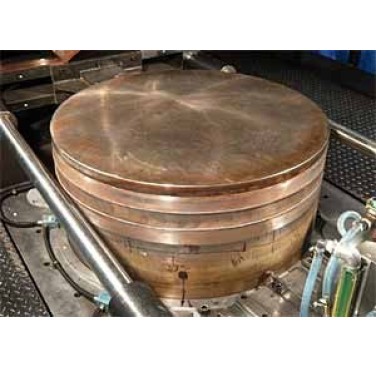

Figure 15. FSW weld
Figure 15. FSW weld

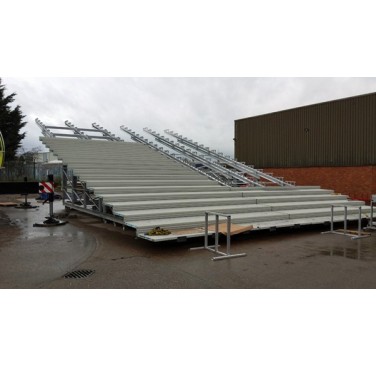

Figure 16. One of the sections of decking to be installed in the Olympic Stadium
Figure 16. One of the sections of decking to be installed in the Olympic Stadium

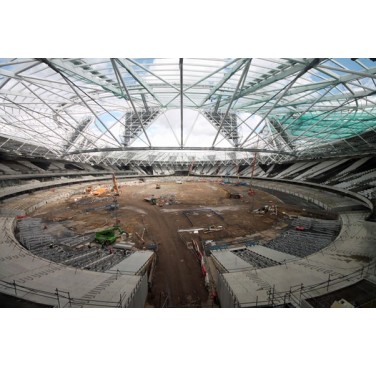

Figure 17. The decks being installed as part of the Olympic Stadium transformation project
Figure 17. The decks being installed as part of the Olympic Stadium transformation project

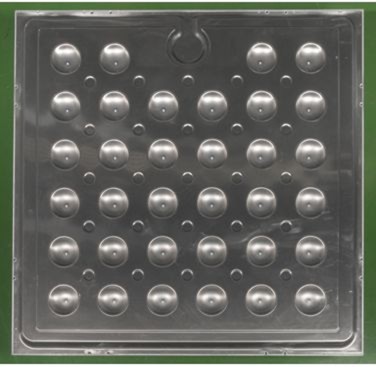

Figure 18. Sunlit Sea’s float assembly
Figure 18. Sunlit Sea’s float assembly

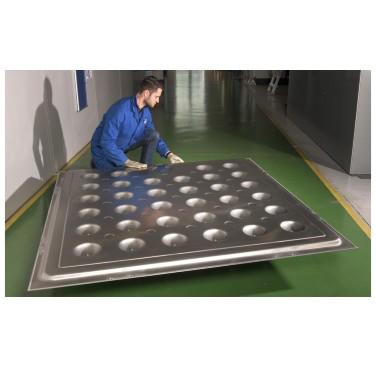

Figure 19. Floating assembly prototype fabricated with FSW and FSSW
Figure 19. Floating assembly prototype fabricated with FSW and FSSW

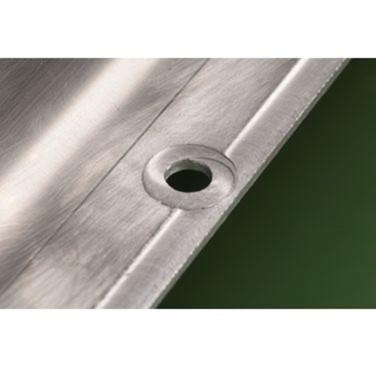

Figure 20. Detail view of sealed hole for attachments using FSSW
Figure 20. Detail view of sealed hole for attachments using FSSW
Figure 21. Detail view of two intersection welds around the perimeter of the floating assembly
Figure 21. Detail view of two intersection welds around the perimeter of the floating assembly

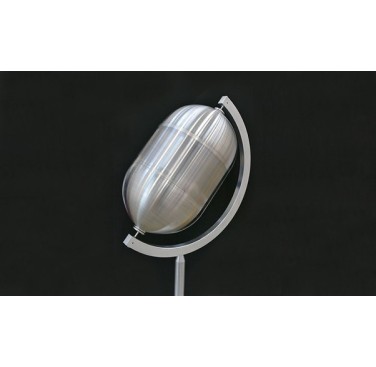

Figure 22. SSFSW cast titanium prototype demonstrator (TRL6) propellant tank
Figure 22. SSFSW cast titanium prototype demonstrator (TRL6) propellant tank

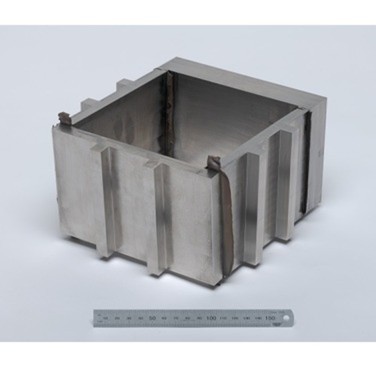

Figure 23. LFW PMD Box technology demonstrator as welded
Figure 23. LFW PMD Box technology demonstrator as welded

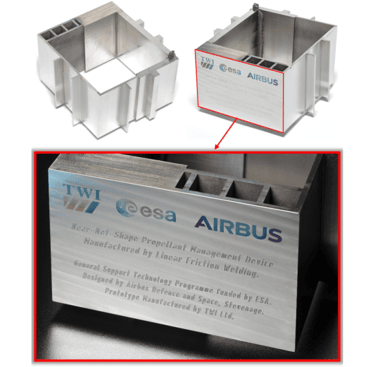

Figure 24. LFW PMD Box technology demonstrator. The engraved text reads: “Near-Net-Shape Propellant Management Device Manufactured by Linear Friction Welding. General Support Technology Programme funded by ESA. Designed by Airbus Defence and Space, Stevenage. Prototype Manufactured by TWI Ltd.”
Figure 24. LFW PMD Box technology demonstrator. The engraved text reads: “Near-Net-Shape Propellant Management Device Manufactured by Linear Friction Welding. General Support Technology Programme funded by ESA. Designed by Airbus Defence and Space, Stevenage. Prototype Manufactured by TWI Ltd.”
Figure 25. Two configurations of Ariane 6, two and four boosters (courtesy of ESA)
Figure 25. Two configurations of Ariane 6, two and four boosters (courtesy of ESA)
Figure 26: Types of bosses found on cryotanks (courtesy of ArianeGroup)
Figure 26: Types of bosses found on cryotanks (courtesy of ArianeGroup)
Figure 27. Eurostar Neo (courtesy of Airbus UK)
Figure 27. Eurostar Neo (courtesy of Airbus UK)

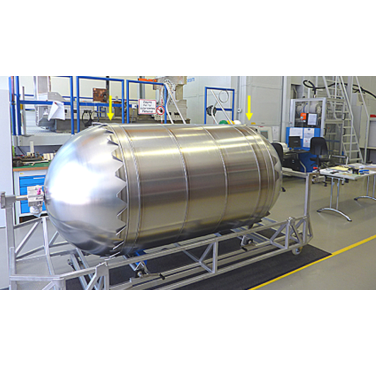

Figure 28: Electron beam welding installation used to join the bipropellant tank for Orion's European Service Module. Detail of end skirt lugs to satellite propellant tanks (courtesy of Airbus UK)
Figure 28: Electron beam welding installation used to join the bipropellant tank for Orion's European Service Module. Detail of end skirt lugs to satellite propellant tanks (courtesy of Airbus UK)

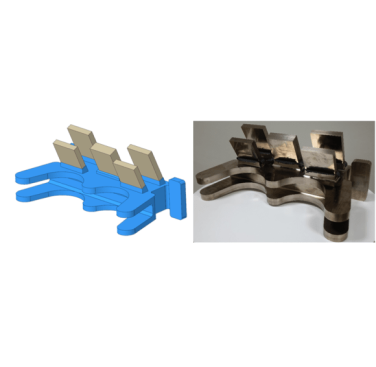

Figure 29. Rear engine fitting full scale demonstrator - (Left) Computer aided model produced prior to project initiation. (Right) photographed following LFW completion. For scale the component width is approximately 600mm and the height approximately 400mm
Figure 29. Rear engine fitting full scale demonstrator - (Left) Computer aided model produced prior to project initiation. (Right) photographed following LFW completion. For scale the component width is approximately 600mm and the height approximately 400mm

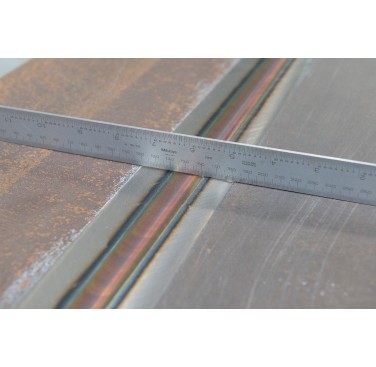

Figure 30. Friction stir welding in steel
Figure 30. Friction stir welding in steel

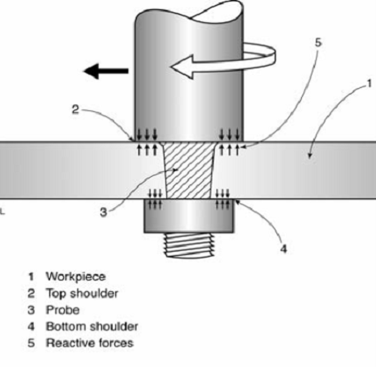

Figure 31. Bobbin tool FSW
Figure 31. Bobbin tool FSW

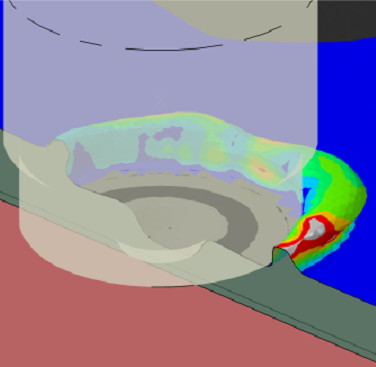

Figure 32. Image of FSW simulation of aluminium showing material flow around the tool
Figure 32. Image of FSW simulation of aluminium showing material flow around the tool

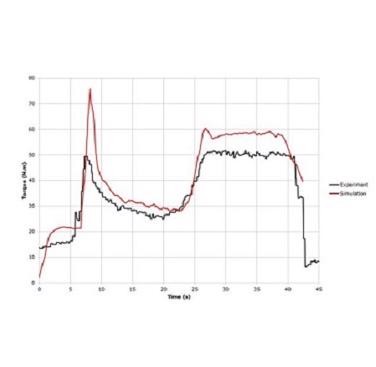

Figure 33. Comparison between experimental measurements and simulation prediction of torque
Figure 33. Comparison between experimental measurements and simulation prediction of torque

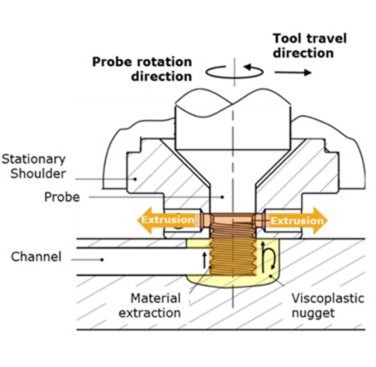

Figure 34. CoreFlow® tooling description and main process parameters
Figure 34. CoreFlow® tooling description and main process parameters

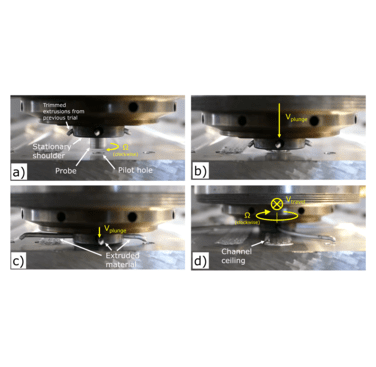

Figure 35. Main stages of the CoreFlow® cycle: (a) Start of probe spindle rotation; (b) Plunge into workpiece; (c) Probe is engaged with the workpiece and shoulder contacts the workpiece surface which initiates material extrusion; (d) Tool traverses along a defined path to form a sub-surface channel with consolidated channel ceiling, extruding material as it travels
Figure 35. Main stages of the CoreFlow® cycle: (a) Start of probe spindle rotation; (b) Plunge into workpiece; (c) Probe is engaged with the workpiece and shoulder contacts the workpiece surface which initiates material extrusion; (d) Tool traverses along a defined path to form a sub-surface channel with consolidated channel ceiling, extruding material as it travels

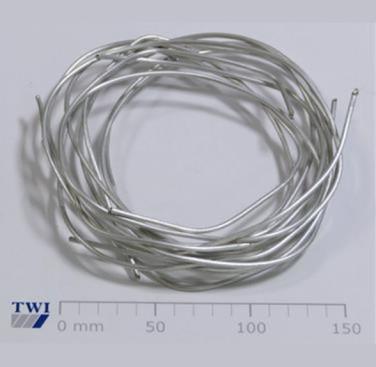

Figure 36. Spool of wire extruded as by-product of CoreFlow®
Figure 36. Spool of wire extruded as by-product of CoreFlow®

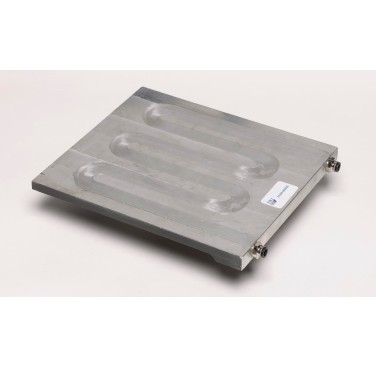

Figure 37. CoreFlow® demonstrator
Figure 37. CoreFlow® demonstrator

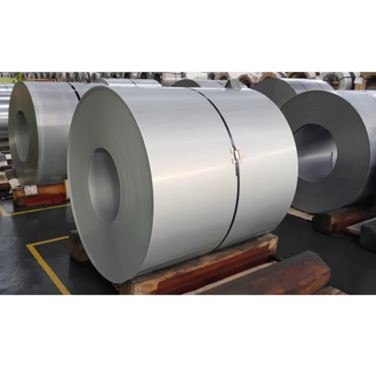

Figure 38. Aluminium coils
Figure 38. Aluminium coils

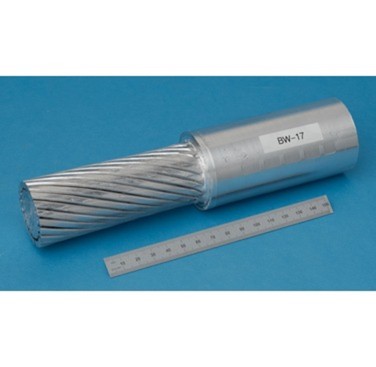

Figure 39. Single-sided RFW stranded aluminium cable to aluminium bar
Figure 39. Single-sided RFW stranded aluminium cable to aluminium bar

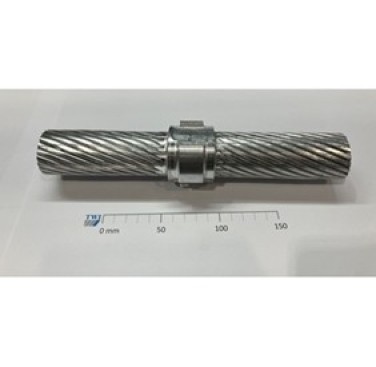

Figure 40. Double-sided RFW stranded cable to stranded cable via small aluminium puck
