Estimating long-endurance fatigue strength of girth-welded pipes using local stress approach


Yanhui Zhang and Steve J Maddox

TWI Ltd, Granta Park, Great Abington, Cambridge CB21 6AL, UK

Paper presented at Proceedings 33rd International Conference on Ocean, Offshore and Arctic Engineering (OMAE 2014) June 8-13, 2014, San Francisco, USA

Abstract

Nominal and hot spot stresses are conventionally used for fatigue design of welded joints. In this paper, use of local stress approaches was attempted to estimate the long endurance fatigue strength of girth welded pipes. Finite element modelling was carried out to determine the dependence of the stress concentration and through-wall stress distribution on weld root bead profile, with hi-lo values ranging from 0.25 up to 1.0mm. Two local stress approaches, critical distance and reference radius, were used to estimate the fatigue strength of girth welds at 5x106 and 107 cycles, which were then compared with available full-scale fatigue test results. To use the critical distance approach, the relevant material properties, such as threshold stress intensity factor range and fatigue limit for flush ground welds, were determined experimentally. This paper presents the results of the fatigue strength estimates and draws conclusions about the applicability of the local stress approaches to girth welds.

Introduction

Fatigue design of welded joints is generally based on S-N curves expressed in terms of either the nominal or structural hot-spot stress range [eg, 1,2]. Neither of these stresses includes any allowance for the notch effect of the stress concentration at the fatigue crack initiation site. Instead, this is built into the S-N curve by basing it on the results of fatigue tests on actual welded specimens. That stress concentration depends on the local weld geometry which in turn depends on such factors as the welding process, the welding position and the type and extent of any welding flaws. Variations in these factors lead to scatter in fatigue test data, scatter that is particularly wide in the long-endurance regime. Thus, although the above design approach is convenient for designers, weaknesses are that the long-endurance fatigue life and the constant amplitude fatigue limit (CAFL) are not well defined and that it is not possible for the designer to make allowance for known characteristics related to the factors that influence the local stress concentration and hence fatigue life. To overcome these inadequacies, there is increasing interest in the development of local stress approaches that include allowance for the notch-effect of the weld itself, for the fatigue design of welded joints.

Local stress-based fatigue assessment approaches involve use of the stress range at the point of potential fatigue crack initiation under consideration in conjunction with a suitable S-N curve. This might be an S-N curve for the same material without a stress-concentrating feature, typically that for smooth specimens when assessing machined notches. In this context, one way to determine the local stress range is to multiply the applied nominal stress range by the maximum stress concentration factor (SCF), Kt. This is a simple task if the assessment concerns a well-defined geometry for which a published SCF is available. However, even then the approach can prove to be too conservative, with the actual life being significantly higher than that determined by this method. In other words, the SCF is higher than the fatigue strength reduction factor, Kf [3]. A simple example is a plate with a hole in it, where Kt = 3.0. For a very small hole (for example, in μm), Kf is found to be 1.0. However, for a hole with a sufficient size (for example, in mm), Kf approaches Kt. A number of researchers have attempted to produce methods of calculating a local stress that takes account of this behaviour by assuming that the apparent increase in strength for small notches is due to the fact that the stress concentration occurs over only a small volume of material. The underlying assumption is that, in order for fatigue failure to occur, the average stress must exceed the fatigue limit of the material without stress concentration, ΔSo, over some critical volume surrounding the notch, rather than the maximum stress range. Neuber [4] proposed a microstructural support concept which considers the effect of a stress gradient on fatigue behaviour. The effect can be taken into account by different hypotheses in the elastic stress analysis of a notch. For simplicity of calculation, this approach is often reduced to a consideration of the stress at a single point [3,5-7], the stress averaged over a given distance [4,6-8] or the stress averaged over an area [7,9]. The resulting local stress might still be suitable for comparison with the notch-free S-N curve for the material or, and certainly in the case of welded joints, a better comparison might be with an S-N curve derived from fatigue test results obtained from notched samples that are expressed in terms of the same local stress.

Steel catenary risers (SCRs) are increasingly used for deep-water oil and gas developments. Pipes are joined by girth welds commonly made from one side. The fatigue performance of the welds, especially in the long endurance regime, is a major design consideration since SCRs can experience cyclic loading from a variety of sources, including very high numbers of low stress cycles due to vortex induced vibration (VIV). Thus, a local approach that improves the accuracy of long-endurance fatigue life or CAFL estimations could be highly relevant. A recent TWI project involving fatigue tests of girth welded pipes included comprehensive post-test examination of the welds with particular attention to the geometry in the weld root region where fatigue cracking initiated [10]. This provides a good opportunity to examine the suitability of local stress approaches for girth welds. Thus, two widely recognised approaches, critical distance and reference radius, were used to estimate the long-endurance fatigue strengths of girth welds.

Outline of the local stress approaches used in the analysis

Critical Distance Approach

This approach was first proposed by Tanaka [6] and further developed by Taylor [7] after analysing the stress distribution ahead of a crack and relating the average stress to a material constant ao, originally proposed by Haddad et al [11]. For a component containing a crack, the fatigue limit, ΔSoc, can be estimated using linear elastic fracture mechanics (LEFM) by the following equation:

eq1
[1]

where ΔKth is the threshold stress intensity factor range, F is a parameter dependent on geometry, crack size and shape which is equal to 1.12 for an edge crack [12], and α is crack length. However, when the crack size is very small, less than about 1mm, the above relation becomes invalid, due to the so-called crack size effect [13]. LEFM predicts an almost infinite fatigue limit as the crack size approaches zero. However, in reality, it is known that, when a crack is small, the fatigue limit will not be as sensitive to the change of crack size as predicted by Eq.1 and there will be a definite fatigue limit of ΔSo for a smooth, uncracked body. To calculate the fatigue limit for components containing small cracks, Haddad et al [11] proposed the following empirical equation by introducing the material constant ao:

eq2
[2]

where ΔS is the stress range and ΔK is stress intensity factor range. When ΔK is equal to ΔKth, ΔS is equal to ΔSoc. By noting that, when crack size a approaches zero, ΔSoc= ΔSo. αo can be estimated from:

eq3
[3]

The introduction of the parameter αo was to overcome the difficulty of applying LEFM in the small crack regime. The above equations have been used to calculate fatigue limits for cracked components [7-8].

Taylor [7] found that ao is an important material parameter which can also be used to estimate the fatigue limit for notched, but uncracked, components. He observed that the stress at a distance of ao/2 from the maximum stress location, the average stress over a line distance of 2ao and the average stress over an area within a radius of ao from the surface with the maximum stress were almost identical to the fatigue limit of the uncracked material (ΔSo). He termed the three stresses point, line and area respectively. Thus, the stress distribution approaching a notch (as seen later, in Figure 6) could be used to determine the fatigue limit of the notched component as the applied stress needed to produce the material’s ΔSo value at these three locations. Indeed, he found that the same method produced reasonable estimates of the long-endurance fatigue strength, endurances less than, but approaching, the fatigue endurance limit. In such an application, ΔSo would be the fatigue strength of the plain material at the endurance of interest. The cases concerned were a wide plate containing a circular hole [7], a T-shaped fillet welded joint and a butt weld [14].

It will be evident that the fatigue strengths estimated by the above methods depend on αo, which in turn depends on the parameters in Eq.3. The effect of changes is not clear cut. A decrease in F would increase ao and hence increase the fatigue strength estimate. However, the value of ΔSo influences both ao and the stress to be compared with that obtained from the stress distribution curve such that the estimated fatigue strength of the detail under consideration may be increased or decreased. This is considered later when the method is applied to girth welds.

The apparent success of the approach for estimating the fatigue strength of welded joints is surprising. A key parameter in the definition of the critical distance ao is the fatigue limit for the un-notched material. This implies a connection between the fatigue performance of a welded joint and that of the parent metal, whereas none exists. This is particularly the case when high-strength materials are considered. In general, the fatigue strength and fatigue limit of the plain material increase with increase in tensile strength whereas those for welded joints are independent of tensile strength. Nevertheless, in spite of these misgivings it was decided to investigate the application of the approach to girth welded joints in steel pipes.

Reference Radius Approach

This is also an average stress approach that represents a sharp notch by a reference round notch. The basic idea is that the stress reduction due to averaging the stress over a certain distance from the notch tip can alternatively be achieved by introducing a fictitious, enlarged notch radius. Neuber [15] proposed the following equation for the fictitious radius, ρf :

eq4
[4]

where ρ is actual notch radius, s is a factor based on a stress multiaxiality and strength criterion and ρ* is a dimension analogous to Haddad’s material constant ao that would need to be established experimentally. For welded joints, Radaj et al [16] assumed s to be 2.5 for plane strain conditions, which was based on the stress analysis under different loading conditions [17], and ρ* to be 0.4 for low-strength steel. This results in an increase of the actual radius by 1mm. For the most severe stress concentration, ρ can be assumed to be zero, resulting in a reference radius of 1mm. Applying this method to welded joints, the actual sharp notch (e.g. weld toe or root) is replaced by a reference radius of 1mm in the FE model and the maximum stress on the radius taken to be the local stress. Based on fatigue test results obtained from a variety of welded joints expressed in terms of this local stress range, the IIW FAT-225 S-N curve (the fatigue strength at N = 2 x 106 cycles being 225 MPa) has been proposed for design [18]. This approach has also been included in a DNV code [2]. Although less widely used, a reference radius of 0.05mm has also been proposed [19,20], for assessing very thin (sheet) specimens, related to the much higher FAT-630 design curve. The current IIW recommendation is that it should only be needed for thicknesses up to 5mm. Although the 0.05mm radius would not be considered suitable for assessing the girth welds, this approach was explored here for comparison.

To evaluate the accuracy of the present fatigue strength estimates, the corresponding mean S-N curves should be used. According to Sonsino [21], the mean curves for both FAT 225 and FAT 630 can be estimated by multiply the FAT number by 1.37. This results in fatigue strengths at 2 x 106 cycles of 308MP for the 1mm reference radius and 863MPa for the 0.05mm. The estimated fatigue strength was equivalent to the nominal stress when the local stress was equal to the fatigue strength corresponding to the designated mean S-N curve.

Girth-weld data used to apply local stress approaches

Fatigue Performance of Full-Scale Girth Welded Pipes

Details of the material, testing conditions and fatigue performance of the girth welds are contained in [10]. In brief, 406mm outside diameter by 19.1mm wall thickness seamless steel pipes to API 5L-X70 specification were tested. The girth welds were made from one side using PGMAW/GMAW processes, in the 5G position. The weld cap at each start/stop position was ground flush with the pipe surface. All welds were acceptable to a typical SCR weld quality specification. Each weld was instrumented with strain gauges to allow measurement of axial strain and its variation around the circumference on the outside surface of the pipe. The nominal strains were used in conjunction with axial misalignment measurements to calculate the stress range in the region of fatigue crack initiation. The tests were performed in resonance fatigue testing machines at around 30 Hz with an axial tensile mean stress of 150MPa, achieved by pressurising the pipes internally with tap water.

A total of eleven girth welds were tested to establish the constant amplitude (CA) S-N curve. Fatigue cracking always initiated at the weld root and propagated through the pipe wall to the outside. Regression analysis produced a mean S-N curve of the familiar form ΔSm.N = C, where m and C are material constants, with m = 3.25 and C = 2.02 x 1013, slightly shallower than the design S-N curves for weld toe or root failure, for which m = 3. However, the value of m = 3 is within 95% confidence estimates of the slope and therefore it would be legitimate, because of the small number of tests, to assume this value when fitting the S-N curve, giving ΔS3.N = 6.174 x 1012. The test results and the mean, lower (mean minus 2 standard deviations of log N) and upper bound (mean plus 2 standard deviations) curves are plotted in Figure 1 where they are seen to be generally better than the BS 7608 [1] Class D mean S-N curve. The lowest stress range that produced failure, with an endurance of 4.4x107 cycles, was 55.4MPa. Thus, it appears that the CAFL for these girth welds may correspond to an endurance between 5x107 and 108 cycles which, considering also the two unbroken welds that survived for 108 cycles, would be between 45 and 55MPa. It is apparent that the Class D mean fatigue limit of 74MPa, corresponding to 107 cycles, over-estimates the value suggested by the present test results.

Extensive post-test examination of failure locations and macro-sectioning of unbroken welds were carried out. The fatigue performance of the girth welds strongly depended on the profile of the weld root bead toe where the fatigue cracks always initiated. Poor weld root profile, which was indicated by a large step between the surfaces of the weld root bead and the adjacent pipe, created a high stress concentration.

In the present girth welds the step was equivalent to the hi-lo, the step between the pipe surfaces either side of the weld, because of the very flat weld root bead, as indicated in Figure 2. For each girth weld, the majority of the weld along the pipe

FIGURE 1 Fatigue test results obtained from full-scale girth-welded pipes
Figure 1 Fatigue test results obtained from full-scale girth-welded pipes

circumference exhibited a relatively good weld root profile, with hi-lo values less than 0.2mm. However, regions with poor weld root bead profile were always found along the weld and crack initiation often occurred at a location with the poorest weld root bead profile. Figure 2 shows two examples. In the first (Fig.2(a) and (b)), a small crack, 0.32mm deep, had developed at a location with a hi-lo of 0.5mm after the weld had endured 4.0x106 cycles at 116MPa. In the second example

[ Zoom ]
Estimating long-endurance fatigue strength of girth-welded pipes using local stress approach Figure 2
Figure 2 Macro-sections of two girth welds

a) Low magnification view of weld W2 in pipe S13 which was un-broken after 4.0x106 cycles at a stress range of 116MPa;

b) Higher magnification view of weld W2 in pipe S13. The crack and the hi-lo were respectively 0.32mm and 0.5mm at the section.

c) Macro-section of weld W2 in pipe S10 which was unbroken after 2.97x107 cycles at a stress range of 72MPa. The crack and the hi-lo were respectively 0.24mm and 0.5mm at the section.

(Fig.2(c)), where the hi-lo was also 0.5mm, a 0.24mm deep had developed after 2.97x107 cycles at 72MPa. Both welds were declared to be run-outs since failure occurred in other welds in the specimens.

The worst hi-lo values from a total of 33 girth welds were measured (the project involved further tests under variable amplitude loading). They represented either the largest present in an unbroken weld or the value at the failure location. The average hi-lo value was 0.47mm. The measured hi-lo values of these girth welds are shown in Figure 3. Statistical analysis showed that 80% of them fall between 0.25 and 0.68mm

Threshold Stress Intensity Factor Range

In order to calculate the material constant ao using Eq. 3, the threshold stress intensity factor range, ΔKth, is required. This was determined in the girth weld project using single-edge notch bend specimens, notched in the welds which were at the centre. The tests were carried out under decreasing ΔK in accordance with BS 12108 [22] at a stress ratio R=0.7 and a loading frequency of 10Hz. ΔKth corresponding to a crack growth rate of 10-7mm/cycle, in accordance with ASTM E647, was determined to be 134N/mm3/2.

Fatigue limit of flush ground welds

In order to consider a welded joint, ΔSo in Eq.3 should be the fatigue limit for flush ground girth welds. Relevant experimental data from flush ground girth welds in strip specimens cut from pipes [23] are presented in Figure 4.

FIGURE 3 The worst hi-lo values measured from a total of 33 girth welds.
Figure 3 The worst hi-lo values measured from a total of 33 girth welds.
FIGURE 4 Experimental results of flush ground girth welds [22] and the S-N curve derived from these data.
Figure 4 Experimental results of flush ground girth welds [22] and the S-N curve derived from these data.

Regression analysis of the data produces a mean S-N curve with a slope of m = 4.2, compared with the value of 4 for the relevant BS 7608 design curve (Class B). Re-analysis of the data assuming m = 4 gives the mean curve shown in Figure 4, ΔS4N=5.88 x1015. It will be evident that the fatigue limit is not obvious from the available data. Therefore, for the benefit of the analysis of the girth welds values corresponding to the fatigue strengths at 5x106 and 107 cycles were used to define ΔSo. From the fitted mean S-N curve these are 185.2 and 155.7MPa, respectively. With the above ΔKth value, the material constant ao was calculated to be 0.133mm for the fatigue strength at 5x106 cycles and 0.188mm for the fatigue strength at 107 cycles.

It was noted that most of the above fatigue data for flush ground girth welds were obtained at R = 0.1, lower than those used in the tests on as-welded girth welded pipes where a constant mean stress of 150MPa was applied. The impact of this on the fatigue strength estimates is considered later.

Estimation of long-cycle fatigue strength of girth welds

Finite Element Analysis

A 2D axi-symmetric FE model, incorporating a girth weld in a full-scale pipe, was generated using Abaqus software. Eight-noded quadratic elements were used in a static, elastic analysis. A nominal axial stress of 50MPa was applied to the pipe. In all models, the outer pipe wall surfaces were assumed to be aligned (no hi-lo at weld cap) and one side of the weld root bead was flush with the inner pipe surface, while a hi-lo was included on the other side of the bead, as found in most of the girth welds.

FIGURE 5 The FE model and the stress contour calculated for the weld root bead profile
Figure 5 The FE model and the stress contour calculated for the weld root bead profile

a) FE Model

b) Meshing and the stress contour predicted

A fine mesh was adopted in the vicinity of the notch created by the corner between the weld root bead and the pipe inner surface.

Estimation by the Critical Distance Approach

Four FE models were produced, with hi-lo values of 0.25, 0.5, 0.75 and 1.0mm. Figure 5 shows that for a hi-lo of 1mm. Through-thickness stress distributions, starting from the weld root on the inside, were determined at locations where the stress along the pipe axis was at a maximum. Stress/distance curves were recorded along lines perpendicular to the local maximum principal stress, which corresponds to the direction normal to the surface. Two examples of the stress distributions are shown in Figure 6. It can be seen that the local stress, and hence SCF, increases with increase in hi-lo and decreases sharply within 0.1mm from the notch.

Only the first two of the three stress calculation methods described before were used. The third, the area method, was not used because of the difficulty of obtaining an average stress at the hi-lo. To obtain an average stress over a certain line distance for the line method, either a fourth-order polynomial equation or a power function was first derived for each model to characterise the stress distribution as a function of the distance from the inside surface. In all cases, the correlation coefficient (R2) for each curve was better than 0.95. By integrating the equation from zero to 2ao, the average stress corresponding to the line method was obtained. For the point method, the stress at the distance ao/2 from the inside surface was read from the stress distribution for each model. The estimated fatigue strength was then equivalent to the nominal stress when the stress at ao/2 was equal to the fatigue strength of the flush ground welds for the particular number of cycles (ΔSo). Similarly, for the line method, the estimated fatigue strength was equivalent to the applied nominal stress when the average stress over the line distance of 2ao from the notch surface was equal to ΔSo.

Attention was focused on the long-endurance regime, in particular the estimated fatigue strengths at endurances of 5x 106 and 107 cycles. The former was selected because it is the assumed fatigue endurance limit (N corresponding to the CAFL) in some design codes [e.g. 24] while the latter is the more commonly accepted endurance limit, e.g. BS 7608 [1] and IIW [25]. The estimated results for different hi-lo values are given in Table 1 and plotted in Figure 7. It will be seen that the calculated fatigue strengths decreased with increasing hi-lo. For example, for a fatigue endurance of 107, the estimated fatigue strength using the point method was about 85MPa for a girth weld with a hi-lo of 1mm. Although the point and line methods

Table 1 Fatigue strengths for different weld root bead profiles calculated using critical distance approaches at two different endurances (107 and 5x106 cycles).

Hi-lo,
mm

For endurance of 107 cycles (ao=0.236mm)

ΔSo, full-scale
girth weld,
MPa

Point method

Line method

Calculated
ΔSo, MPa

Difference
from
experiment

Calculated
ΔSo, MPa

Difference
from
experiment

0.25

85.2

119.8

41%

121.7

43%

0.50

101.9

20%

105.9

24%

0.75

91.0

7%

95.4

12%

1.0

84.8

0%

87.7

3%



For endurance of 5x106 cycles (ao=0.167mm)

0.25

107.3

131.2

22%

137.2

28%

0.50

109.6

2%

117.4

9%

0.75

97.0

-10%

104.0

-3%

1.0

90.4

-16%

95.6

-11%

FIGURE 6 Examples of the stress distributions determined by FEA (the applied nominal stress was 50MPa).
Figure 6 Examples of the stress distributions determined by FEA (the applied nominal stress was 50MPa).
FIGURE 7 Dependence on hi-lo of the fatigue strength of the girth welds calculated by the critical distance approaches.
Figure 7 Dependence on hi-lo of the fatigue strength of the girth welds calculated by the critical distance approaches.

gave similar results, the line method often gave slightly higher strengths than those obtained by the point method. A good estimate was made of the fatigue strength of the full-scale pipes at 107 cycles, but only by assuming a hi-lo value of 1.0mm. The estimate based on the actual average hi-lo was reasonable only at the lower endurance of 5x106 cycles

Estimation by the Reference Radius Approach

Since the wall thickness of the girth welded pipes considered in the present analysis was greater than 5mm, the relevant reference radius to be used when calculating the local stress is 1mm. However, for comparison the value normally confined to assessments of welded joints in plates ≤ 5mm was also considered. Two FE models were established for the 1mm reference radius, one with a hi-lo of 0.5mm and the other 1mm. In addition, four FE models were established for the 0.05mm reference radius , with a hi-lo values of 0.25, 0.5, 0.75 and 1mm. Figure 8 shows two FE models with the same hi-lo of 1mm, one with a radius of 1mm and the other 0.05mm.

Table 2 Fatigue strengths at 107 and 5x106 cycles calculated using the reference radius approach [9,25]

Radius

Hi-lo,
mm

For endurance of 107 cycles

ΔSo, full-scale
girth weld,
MPa

Calculated
fatigue
strength, MPa

Difference
from experiment

1mm

0.5

85.2

99.6

17%

1.0

83.5

-2%

0.05mm

0.25

146.4

72%

0.5

114.8

35%

0.75

98.7

16%

1.0

88.3

4%





For endurance of 5x106 cycles

1mm

0.5

107.3

125.5

17%

1.0

105.1

-2%

0.05mm

0.25

184.4

72%

0.5

144.7

35%

0.75

124.4

16%

1.0

111.3

4%

[ Zoom ]

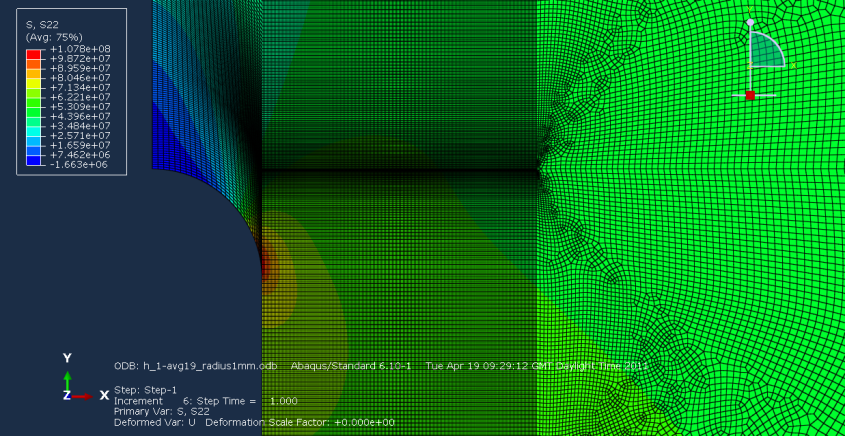

FIGURE 8 The FE model and the calculated stress contour for the weld root bead profile a)
FIGURE 8 The FE model and the calculated stress contour for the weld root bead profile with a hi-lo of 1.0mm (in this case, hi-lo=weld root bead height, 18.5/19.5mm wall thickness, applied nominal stress=50MP a) Corner radius = 1mm
[ Zoom ]
FIGURE 8 The FE model and the calculated stress contour for the weld root bead profile b)
FIGURE 8 The FE model and the calculated stress contour for the weld root bead profile with a hi-lo of 1.0mm (in this case, hi-lo=weld root bead height, 18.5/19.5mm wall thickness, applied nominal stress=50MPa b) Corner radius = 0.05mm

The estimated fatigue strengths at 107 and 5x106 cycles for the two reference radii and different hi-lo values are compared with the experimental values in Table 2. As the reference S-N curves have the same slope as that for the full-scale girth welds (m = 3), the differences between the actual and calculated fatigue strengths were the same for both endurances. It can be seen that, for both reference radii, the calculated fatigue strengths at both long endurances agreed well with the actual fatigue strengths for a hi-lo value of 1mm, with the differences being less than ±5%. However, for a hi-lo of 0.5mm, which was about the average of the worst hi-lo values of the 33 girth welds examined, both methods over-estimated the actual fatigue strength, by 17% for the 1mm reference radius and 35% for the 0.05mm reference radius.

FIGURE 9 Dependence on hi-lo of the fatigue strength of the girth welds calculated by the critical distance approaches based on flush-ground weld CAFL corrected for mean stress
FIGURE 9 Dependence on hi-lo of the fatigue strength of the girth welds calculated by the critical distance approaches based on flush-ground weld CAFL corrected for mean stress

Discussion

The 1mm reference radius approach is considered first since, in view of its widespread use in some industries and even acceptance by some design standards, it is the least controversial of the two fatigue strength calculation methods investigated here. Referring to Table 2, good estimates of the actual fatigue strengths at 5x106 and 107 cycles, within 5%, were achieved. However, this was the largest hi-lo seen among the 33 welds examined. Assuming a hi-lo of 0.5mm, the case closest to the average actual hi-lo of 0.47mm, over-estimated the fatigue strengths at the two endurances considered, by 17%. This might reflect a deficiency in the analysis method, but it might also be an indication that the IIW FAT 225 classification is too high. Although it was derived from experimental data [18] subsequent check fatigue tests on fillet-welded joints have produced significantly lower lives than expected for this S-N curve [26]. The specimens concerned were produced using industrial production welding conditions whereas the database used to derive the FAT 225 curve was produced using specimens made in laboratory conditions. Their lower fatigue strengths were attributed to poorer weld profiles and the presence of undercut or cold laps, although the welds met typical weld quality acceptance limits. It is certainly possible that the quality of the girth welds considered here was more comparable with the industrial specimens than the laboratory ones. The above fatigue strength estimate for 0.5mm hi-lo would suggest that FAT 192 is a better choice than FAT 225 for industrial welds, very close to the FAT 194 classification suggested on the basis of the results from the industrial fillet welds [26].

Turning to the results of the analysis assuming a 0.05mm reference radius, rather similar fatigue strengths were obtained as for 1mm reference radius for the 1mm hi-lo case (see Table 2). However, the error for 0.5mm hi-lo was even greater than for the 1mm reference radius. In view of this and bearing in mind the need for more detailed finite element modelling, it will be evident that there is no advantage to be gained from the use of the 0.05mm reference radius compared with the recommended 1mm radius for wall thicknesses greater than 5mm.

The results obtained using the critical distance approach are summarised in Table 1 and Figure 7. As with the reference radius method the best estimates of the fatigue strength at 107 cycles were obtained by both the point and line method for a 1mm hi-lo. For the actual average hi-lo of around 0.5mm the fatigue strength was over-estimated by 20 to 24%.  At 5x106 cycles, reasonable estimates were obtained for 0.5mm hi-lo while those for 1mm hi-lo were underestimated by 11 to 16%. These variations are consistent with the fact that the slope of the S-N curve upon which the fatigue strength estimates were based, that for flush-ground butt welds, was shallower (higher m value) than that obtained from the fatigue tests of the girth welds. This will generally be the case when the method is applied to details incorporating relatively severe stress concentrations, like most welded joints. A further deficiency of the approach is that it proved to be less accurate at 107 cycles than 5x106 cycles for the relevant hi-lo, when the opposite would be expected since the method is primarily directed at estimates of fatigue limits. However, recalling the comments made earlier about the parameters that influence ao , further analysis was carried out to assess the effect of making different assumptions. In particular, it was noted that the experimental data used to determine ΔSo (Figure 4), and hence ao, were obtained at R = 0.1 whereas values of 0.47 and 0.56 were used for the girth weld tests [10] at the two endurances investigated here. The fatigue strength of the flush-ground welds would be expected to be lower at such high stress ratios, resulting in higher values of ao. To investigate this, ao was re-calculated using a value of the CAFL for the flush-ground welds modified by applying the Goodman mean stress correction [27]:

eq5
[5]

where SUTS is the tensile strength of material (601MPa), ΔSR=-1 is the fatigue limit at stress ratio R = -1 and ΔSR is the fatigue limit to be estimated for constant amplitude cyclic loading with a mean stress of Sm . With two equations of the above form, one for R=0.1 and the other for R=0.47 (or 0.56), the item ΔSR=-1 can be deleted and the ΔSo, with the same stress ratios as those for the full-scale pipes, at 5 x106 and 107 cycles, were calculated to be 159.1 and 133.8MPa, respectively. Working as before, these values were used to calculate the fatigue strengths at the two endurances for a series of hi-lo values. The results are presented in Figure 9. Comparing these with those in Figure 7, it can be seen that the lower ΔSo values have improved the correlation between estimated and actual girth weld fatigue strengths by reducing the estimated values, but only slightly. The same was found by Taylor et al [7] in fatigue strength estimates for some butt and fillet welds. In the case of the parameter F, it would be justifiable to assume a lower value than 1.12 on the basis that fatigue cracks are generally semi-elliptical in shape or for finite plate. However, this will simply increase the estimated fatigue strengths for the girth welds making those estimates even more inaccurate. Assuming the lowest possible value of F = 1 over-estimates the fatigue strengths for 0.5mm hi-lo by 28% (point method) to 29% (line method) at 107 cycles and 9-14% at 5 x 106 cycles. Thus, overall the deficiencies noted earlier still stand and this method does not seem to be well suited for application to welded joints.

Conclusions

FE modelling was carried out to determine the through-wall stress distribution and stress concentration at the weld root bead toe. Two local stress approaches, critical distance and reference radius, were used to estimate the long-endurance fatigue strengths of girth welds. The following conclusions were drawn:

  1. FEA confirmed that the hi-lo in a girth-welded joint influenced the local stress, the SCF increasing with increase in hi-lo.
  2. Although both critical distance methods provided reasonable estimates of the fatigue strength of the girth welds at 5 x 106 cycles assuming the average measured hi-lo, it was over-estimated considerably (20 to 24%) at 107 cycles, the endurance regime where the method was expected to be best suited. It was necessary to assume the maximum measured hi-lo to achieve reasonable fatigue strength estimates.
  3. Legitimate modification of the input parameters used to define the critical distance had little effect on the fatigue strength estimates.
  4. In general the local distance approach does not seem to be well suited for application to severely-notched components like welded joints.
  5. The reference radius method also proved to be inaccurate when related to the average hi-lo but this could be explained on the basis of the assumed reference S-N curve rather than any deficiency in the principle of the method. As has been found in the application of the method to other industrial welds, the currently accepted IIW reference S-N curve FAT 225 should be reduced to around FAT 190 for general design.
  6. No advantage can be gained from the use of the 0.05mm reference radius currently recommended for assessing welded joints in thin material (<5mm)  in the assessment of thicker sections when the 1mm radius is sufficient.
